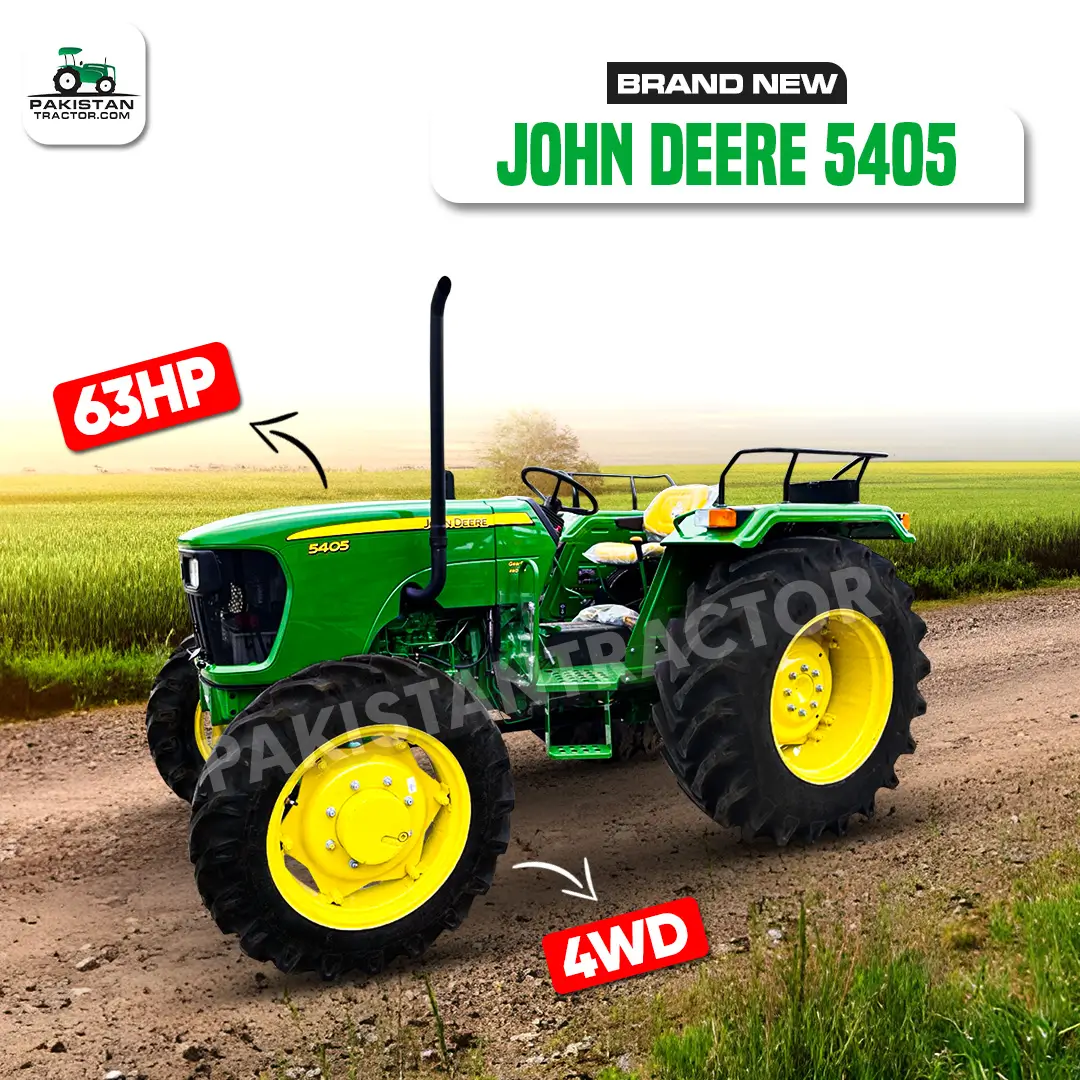

John Deere 5405 63HP is a robust, turbocharged tractor built for serious agricultural demands. Designed with a 3-cylinder liquid-cooled engine and high-pressure common-rail (HPCR) fuel system, it delivers strong performance and good fuel efficiency even under heavy loads.
The 5405 comes with 4WD options, allowing adaptability for different field conditions. Its durable transmission (GearPro or optional PowerReverser), dual clutch, and oil-immersed disc brakes give reliable control and safety. With a lifting capacity around 2000-2500 kg, and a dual PTO (standard + economy modes), it supports a wide variety of implements like rotavators, ploughs, harvesters, and transport trailers. The large fuel tank ( 68-71 litres) and features like power steering, tilt steering, and better cooling (reversible fan) make it suited for long working hours in hot or dusty areas.
Pakistan Tractor exports brand-new John Deere 5405 tractors with parts support and optional implements for farmers in Africa needing strength, reliability, and value.
Technical Specifications of John Deere 5405 63HP Tractor
| Specification | Detail |
|---|---|
| Model | John Deere 5405 63HP |
| Engine Type | 3-cylinder, turbocharged direct injection (HPCR), liquid cooled |
| Rated Power | 63 HP @ 2,100 rpm |
| Transmission Options | 12 Forward + 4 Reverse (GearPro) / 12F + 12R (PowerReverser) / 9F + 3R Creeper variant |
| Clutch | Dual dry clutch; optional wet clutch |
| PTO | Independent dual-speed PTO: 540 rpm standard, 540E (economy) mode |
| Lifting Capacity | 2000 kg standard; optional up to 2500 kg |
| Fuel Tank Capacity | ≈ 68-71 litres |
| Steering | Power steering; tilt steering optional |
| Brakes | Oil-immersed disc brakes, self-adjusting & hydraulically actuated |
| Tyres / Wheels | Front: 6.5×20 (2WD) / 11.2×24 (4WD); Rear: 16.9×30, 12PR |
| Ground Clearance | ≈ 425 mm |
| Wheelbase | 2050 mm |
| Weight | ≈ 2,320 kg (2WD) / 2,600 kg (4WD) |
